Introducing Watchdog v1.0: Zero-Click 3D Scan Processing for Artec Studio - Download. Instructions: Extract the archive directly to your C:\ drive. Please see the disclaimer at the bottom of this page prior to deployment.
Imagine finishing a 3D scan, dropping the project into a folder, and simply walking away, only to receive an email minutes later with a fully processed 3D model, a textured screenshot, and a complete metadata QA report.
Thanks to the new Command Line Interface (CLI) in Artec Studio 20 Professional, and the release of Watchdog v1.0, this level of "hands-free" automation is no longer just a concept; it is a deployable reality.
Stop Waiting on Progress Bars
Traditionally, scan processing is a linear bottleneck. It requires a highly-skilled operator to sit at a workstation, manually babysit loading screens, and click through repetitive workflow nodes.
By combining the new Artec CLI with Watchdog’s lightweight, custom Python engine, that friction is completely eliminated. Watchdog creates a dynamic pipeline that begins processing your 3D data the exact millisecond it hits your hard drive.

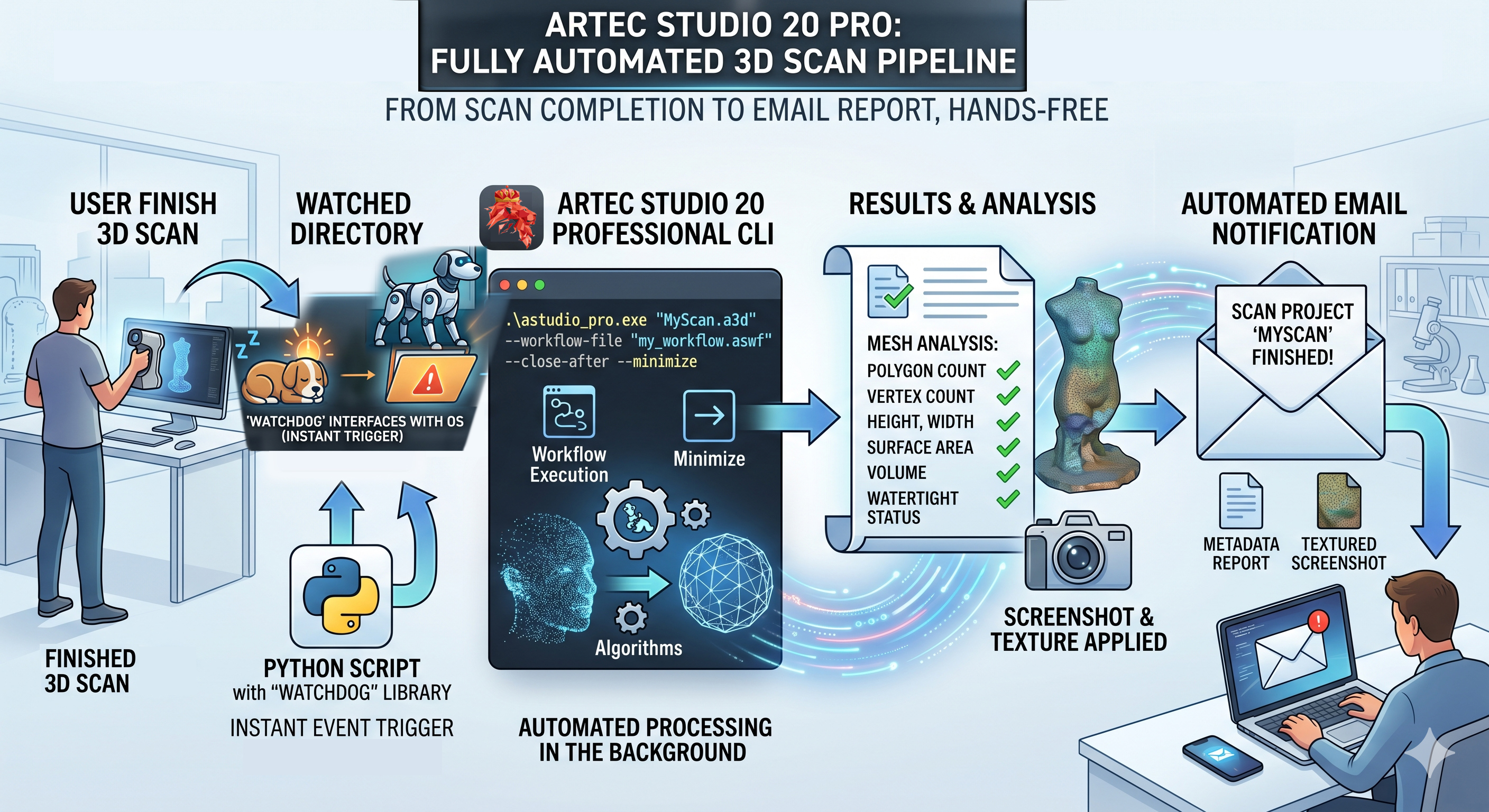

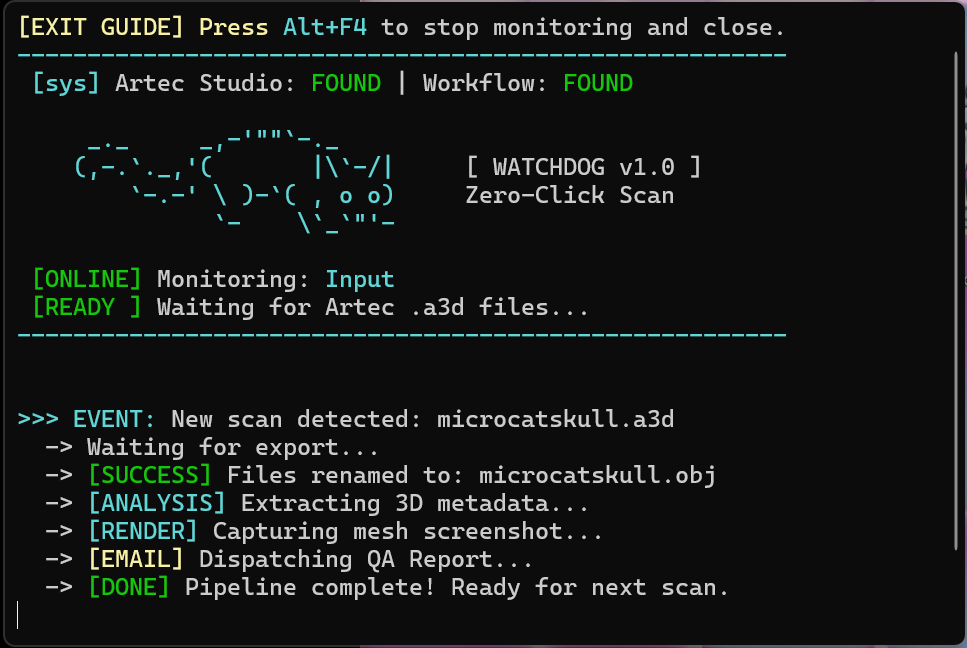

How Watchdog Works
-
The Instant Trigger: Instead of wasting CPU power constantly scanning for new files, Watchdog hooks directly into your Windows operating system. The moment a new raw scan (
.a3d) is saved or dragged into the Watchdog Input folder, the system wakes up and immediately takes over. -
Silent, Automated Workflows: Watchdog launches Artec Studio quietly in the background. It executes your predefined
Optimal.aswfworkflow, actively monitors the system to aggressively manage memory, and keeps the UI minimized so it never interrupts your active screen. - Smart Analytics & Delivery: Once Artec finishes the geometric processing, Watchdog intercepts the final mesh. It calculates advanced 3D metadata, including polygon count, surface area, volume, and watertight status, renders a 3D screenshot, and instantly dispatches the complete QA package directly to your inbox.
- 100% Portable Deployment: Watchdog v1.0 is a completely self-contained, "Zero-Click" deployment. There is no need to install Anaconda, modify the system registry, or touch the command line. You simply extract the folder, double-click the Watchdog icon, and let the automation do the rest.
⚠️ Experimental Utility Disclaimer
Please read carefully before downloading or deploying Watchdog.
"As-Is" Status: The Watchdog pipeline is an experimental, community-tier utility. It is provided strictly "AS-IS," without any express or implied warranties regarding performance, stability, or continuous functionality.
Not Officially Supported: Watchdog is not an officially sanctioned Artec 3D product. The broader Artec 3D engineering and technical support teams do not provide official SLA-backed support, bug fixes, or guaranteed compatibility with future Artec Studio releases for this script.
Use at Your Own Risk: By downloading and executing this tool, you assume all responsibility for its deployment. Artec 3D is not liable for any localized environment errors, system hangs, or data corruption that may occur.
Best Practices: Users are strongly advised to run Watchdog on a secondary environment or test it thoroughly with non-critical 3D scans before integrating it into a live production workflow.
