We are excited to offer you the opportunity to explore the new AI Photogrammetry feature with a sample photoset. This allows you to familiarize yourself with the user interface (UI) and experiment with various settings to understand its full functionality.
1. Download Sample Photoset
To facilitate your evaluation, we have prepared the photoset.
Please download the photoset (CLICK)
Important: Ensure the project is fully downloaded to your system before proceeding to the next steps.
2. Explore Photogrammetry
Once the photos are downloaded, open Artec Studio and begin working with the AI Photogrammetry tool. For detailed guidance, please refer to the AI Photogrammetry Quick Start Guide, which provides step-by-step instructions and best practices for effective use.
The trial project is designed for free exploration, so do not hesitate to experiment and discover all its possibilities. Please contact Support Team should you have any questions or issues.
3. Using printed scale cross for Enhanced Accuracy
To ensure precise reconstruction and proper scaling, it is recommended to incorporate a scale cross into your project. Please find a printed version The file names are ASC A4.pdf (download) for Europe and ASC US Letter.pdf (download) for the USA.
Or these files are available as a PDF document at:
C:\Program Files\Artec\Artec Studio [version]
Important: When printing the scale cross, please ensure your printer settings are configured to print at 100% scale (actual size). Any scaling adjustments may affect measurement accuracy.
How to Create a Scale Cross in Artec Studio

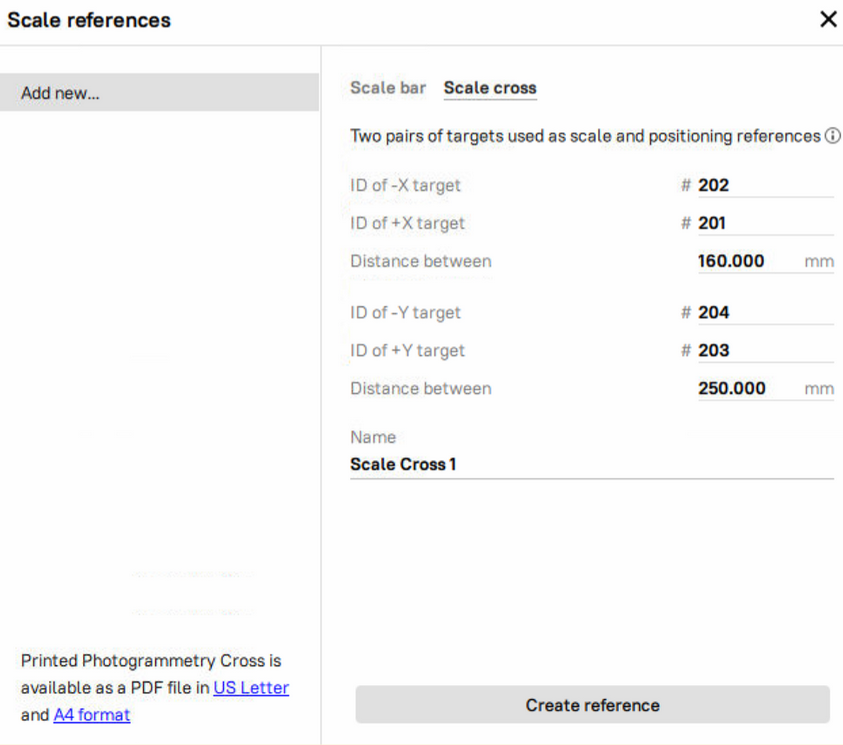

1. Define the IDs of the two pairs of targets, the distance between them (in millimeters) in each pair, and the name of the scale bar.
Note that the IDs must be unique and fall within the range of 1 to 516.
2. Finally, click the Create reference button.
The newly created scale cross will appear in the list of all references on the left.
Important: The scale reference should be visible in as many images or frames as possible, ideally, in every one used for reconstruction.
Once you have reviewed the manual and tested the sample videos, we encourage you to:
- Record and process your own videos or photosets.
- Incorporate a printed scale cross in your scenes to enhance reconstruction accuracy.
- Continue experimenting with settings and techniques to gain a deeper understanding of the tool’s capabilities.
