Updated 08.08.2025
The Artec Spider II is a new scanner in Artec3D product line with high precision and versatility, making it ideal for a range of applications, from industrial design to healthcare.

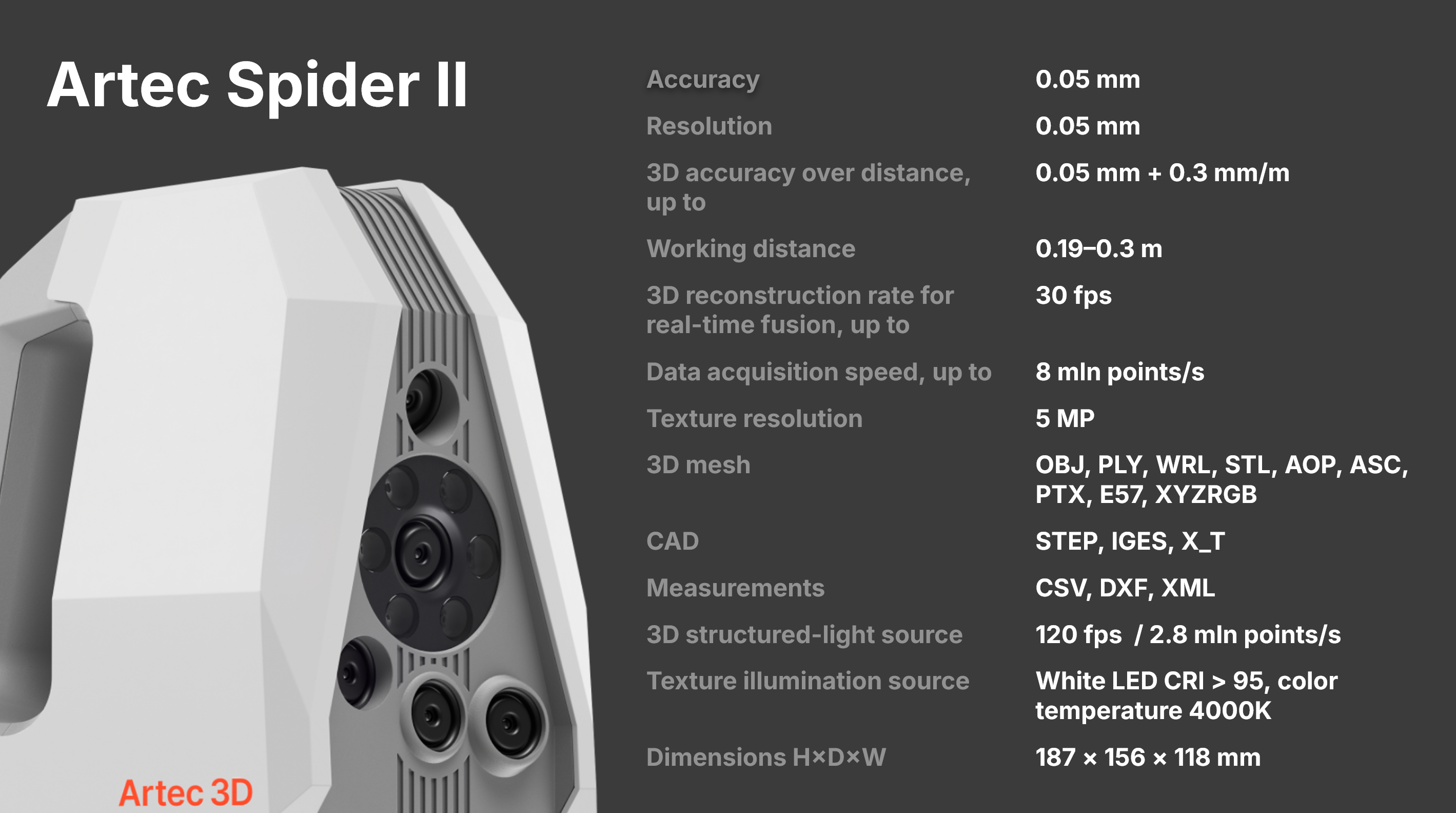

Artec Spider II specs:
The Artec Spider II is designed to capture high-resolution scans with intricate details, generating substantial amounts of data in a short period. When scanning objects with complex geometries, the volume of data can quickly become overwhelming. Transferring this data from the scanner to a laptop without a high-speed interface can lead to bottlenecks, slowing down the entire workflow. It is essential to have a powerful machine to fully leverage all the scanner's advantages.
|
Artec Studio |
Artec Studio 19 and later |
| OS |
Windows 10 (x64), Windows 11 |
|
Graphics/video cards |
(!) GeForce RTX 50x0 GPU support is available starting with Artec Studio 20
Recommended: NVidia GPU Ampere architecture or newer (CUDA Compute Capability >= 8.6), GPU memory >= 8 GB |
| CPU |
Intel Core i7/ i9 Gen 13 or Gen 14+ Intel Core Ultra 7, Intel Core Ultra 9 |
| RAM | Recommended: 64 Gb and higher |
| USB |
Needed: Thunderbolt 4 or Thunderbolt 5
|
Please note that Artec Spider II is not guaranteed to work at maximum performance on machines that do not meet the recommended system requirements.
Please also note that our partners reported issues with some HP ZBook laptops. as there might be issues, we suggest to test it prior purchasing
With transfer speeds of up to 40 Gbps, Thunderbolt offers a significant advantage over traditional USB connections. This rapid data transfer is crucial when working on projects that require real-time processing and quick turnaround times.
As Artec Hardware Team looks toward the future, the trend in technology is leaning heavily towards faster and more efficient data transfer methods. Including a Thunderbolt port in the Artec Spider II would ensure that the device remains relevant and competitive in an ever-evolving market. By embracing advanced connectivity options, manufacturers can cater to the increasing demands for high-speed data transfer, setting a new standard in the industry.
Here is the list of tested hardware (we will constantly adding new configurations):

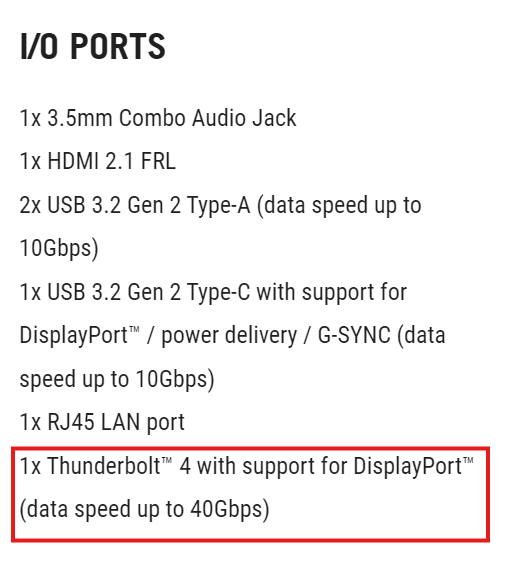

Our team has identified additional laptop models with Thunderbolt 4 support that may be suitable for use with the Spider II. Below is a list of laptops that are expected to meet the Spider II's hardware requirements, though they have not been tested by us yet.
(!) Please note that it is important to use a proper cable to connect the scanner to Thunderbolt port

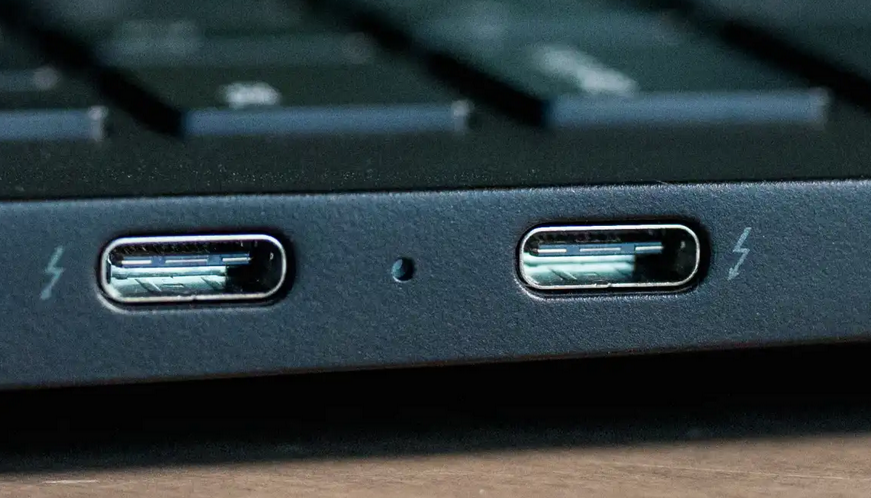

(!!) Please connect the scanner to Thunderbolt port only (the port that is marked with a special sign).
In case you experience any issues with your Artec 3D scanner or require technical assistance with your device or Artec Studio, in the first instance please contact your local Artec dealer/distributor directly. You can also contact the Artec Support Team by clicking on "Submit a request" button on the bottom right part of the screen or by emailing support@artec3d.com
