Updated 1.12.2023
- What is Artec Ray II?
Artec Ray II is a lightning-fast long-range 3D scanner for professional captures with high accuracy.It is ideal solution for precise capture of huge objects such as wind turbines, ship propellers or airplanes, bridges or factory floors, forensic scenes or archeology sites, this professional LiDAR solution produces 3D scans of the highest quality, whether your application is reverse engineering, inspection, creating true-to-life digital twins, documenting crime scenes, or making change-over-time assessments of civil infrastructure.
- How far can I scan with Artec Ray II?
Artec Ray has a working range of 0.5 meter up to 130 meters.
- What is the accuracy of Artec Ray?
Artec Ray II has the following 3D point accuracy:
1.9 mm @ 10 m
2.9 mm @ 20 m
5.3 mm @ 40 m
for more information, please check the specifications
- What kind of power source does Artec Ray II use?
Artec Ray II can operate either on battery power (using two batteries) or while connected to mains power (100–240 V).
The scanner is supplied with four batteries and a battery charger. Two batteries provide approximately 2.5–3 hours of operation and are hot-swappable.
Scanning without batteries is not supported. Even when the scanner is connected to mains power, two batteries must be inserted, as the device is calibrated to operate with them and cannot function without batteries installed.
(!) Power supply is an additional accessory and should be purchased separately.

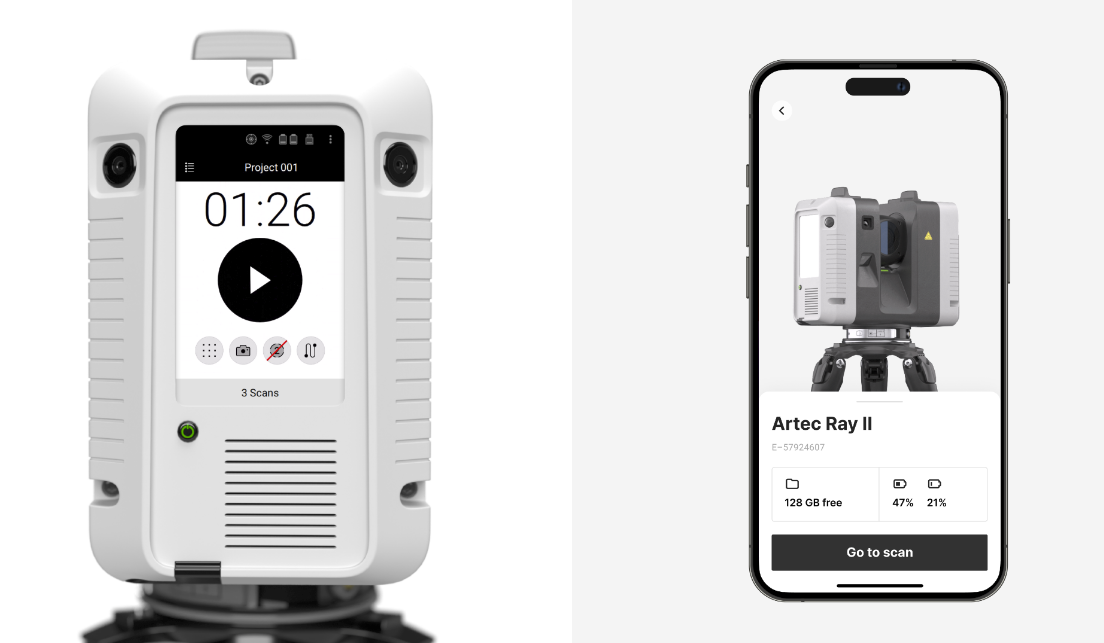

- How can I scan with Artec Ray II?
- Start the scan from the scanner itself
- Connecting wirelessly and scanning via iOS/ Android Remote App (WIndows Tablets are not suported, iPad support will be included in the next version of Artec Remote)

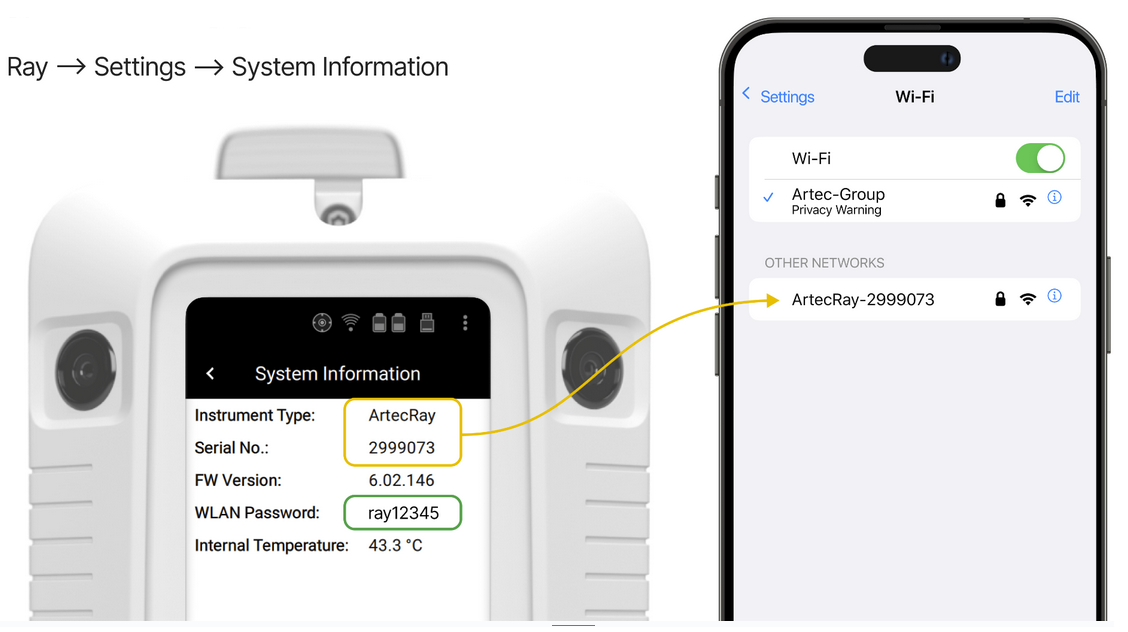

- What is the Wi-Fi password to connect to Artec Ray?
Wifi password can be found in Settings -> System Information
- Can I use any USB Flash drive to store the scanned data?
No, it is not posible to use any other USB Flash driv only those suplied with Artec Ray II (2 USB drives are included in the default package). All scanned drive is stored on USB drive. It is capacity 256 GB.
Artec 3D USB drive has an industrial Grade - durable and reliable enough to withstand harsh conditions such as extreme temperatures, vibrations, shocks, and humidity. The grade is confirmed by testing.
- Can Artec Ray II be used in a non-horizontal position (upside down/sideways)?
Yes, Artec Ray II can be used upside down (inverted 180°, or angled 90°).
-

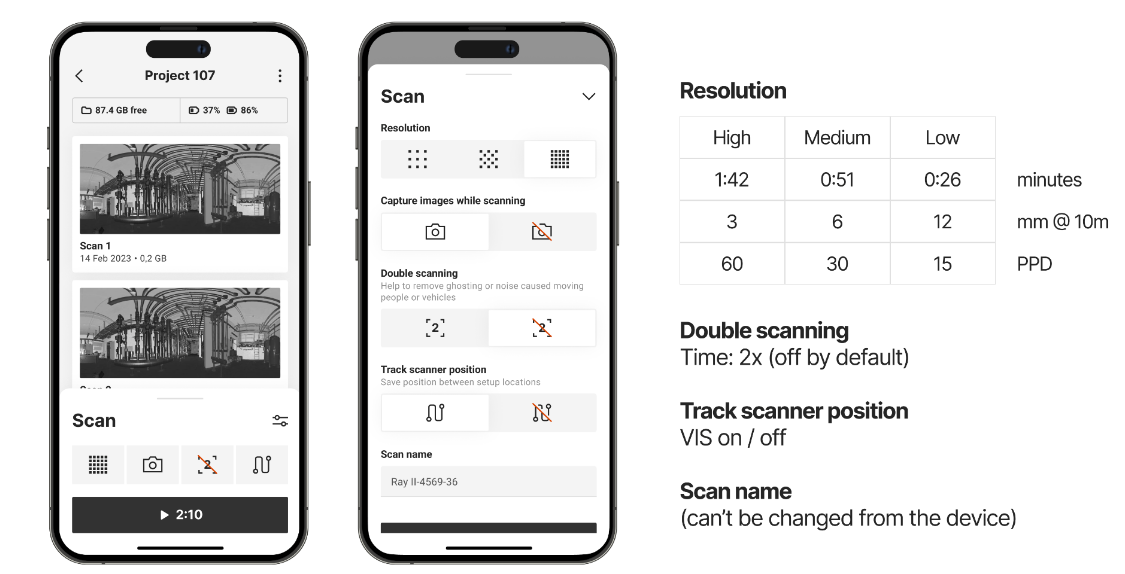

Time taken for a full 360 dome scan with different scanning settings
- What tripods can be used with Artec RayII ?
The Artec Ray II scanner must always be used in combination with a tripod. Placing the scanner on the floor, table, or any other object is not recommended under any circumstances.
The tripod must be able to support at least 5 kg (11 lbs). Most engineering or surveying tripod should work fine. Heavier tripods will work best because they are more resistant to wind gusts and inadvertent tip-over. The Artec Ray II has a special adapter to setup it on the industrial tripod with 5/8" mounting screw.
Please find recommended tripods following the link
- Is it possible to scan with Artec Ray II without a Tripod?
Technically - yes. Practically - proceed with caution. While Artec Ray II can operate without a tripod, there are several important points to consider if you want reliable results. For optimal scan quality, workflow stability, and equipment safety, using a tripod is strongly recommended whenever possible. Going tripod-free should be treated as an exception, not a standard workflow.
Benefits:
- Access to tight spaces
Scanning without a tripod may be useful in locations where a tripod physically cannot be placed.
Potential Drawbacks:
- Reduced stability
Uneven or improvised surfaces can introduce vibrations, which may significantly degrade scan quality.
- Workflow complications
Automatic registration may become unreliable. If the scanner is moved during VIS operation, the camera lenses may be obstructed, leading to registration issues and requiring additional manual post-processing.-
- Risk of damage to the scanner base
Placing the scanner directly on rough or uneven surfaces for extended periods may scratch or damage the base. Over time, this can affect durability and may even lead to calibration issues.
- Safety concerns
A scanner placed on the floor or low surfaces increases the risk of someone tripping over it, potentially causing injury and damage to the instrument. Gravity is undefeated.
- Which Artec Studio supports Artec Ray II?
Artec Ray II is supported starting from Artec Studio 18
- How to import data to Artec Studio 18
Please find the detailed instructions here
- How much time does it take to import a scan to Artec Studio 18
| Full Resolution | Medium Resolution | Low Resolution |
| 6:10 min per scan | 1:45 min per scan | 0:30 min per scan |
- Does Artec Ray II have IP rating?
Yes, it is IP54 (IEC 60529)
- What kinds of targets can be used with Artec Ray II?
Reference spheres can be used while scanning with Artec Ray II. For more information please check the article.
- Is it possible to fly with Artec Ray II as a cabin luggage?
Yes, absolutely. The Artec Team often travels with the Artec Ray II stored in the Artec Backpack. However, the original red case is also suitable for use as hand luggage.
We strongly recommend removing the batteries from the scanner before the flight.
The battery has a voltage of 10.8 V and a capacity of 6900 mAh (6.9 Ah), resulting in a watt-hour rating of 74.5 Wh. This is within the typical airline limit of 100 Wh for batteries carried in cabin luggage.
